TRENDnet 16-Port Rackmount KVM Switch, Model # TK-1601R

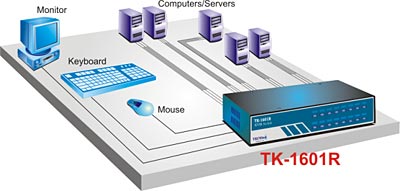

TRENDnet TK-1601R 16-Port KVM Switch allows you
to manage up to 16 PCs with just one keyboard, monitor, and mouse. Switches
between multiple PCs with a simple press of a button. Eliminates the hassle of
cable swapping, save money and space with the TK-1601R. This KVM Switch also
comes with a rack-mount kit for mounting on standard EIA-19 equipment rack in
the Server Room and Computer Lab. Rich in features such as Hot-Plug, Auto-Scan,
and Hot-Key operations TRENDnet TK-1601R is the perfect choice for managing
multiple PCs.
|
Features |
- Support Microsoft Intellimouse, Microsoft
Intellimouse Explorer, Logitech NetMouse, Optical Mouse, Cordless Mouse
and other Microsoft compatible mouse
- PS/2 Keyboard/Mouse emulation
- Supports DOS, Windows
3.x/95/98/ME/NT/2000/XP, Netware, Unix, Linux, and more
- Very high video quality – up to 1920 x
1440 resolution and 200Mhz bandwidth
- No software required – easy PC selection
via Push Buttons and Hot-Key Operations
- Hot-Plug feature – add or remove PCs
without powering off the KVM Switch or other PCs
- Auto-Scan Mode for monitoring PCs; with
configurable scan interval from 5 ~ 99 seconds
- Keyboard status restored when switching
between PC’s
- LED Display for easy status monitoring
- Beeping sound for port switching
confirmation (could be disabled in auto-scan mode)
- EIA-19” rack-mountable (hardware included)
|
|
Specifications |
|
Computer Port: |
- 16 ports.
- Keyboard and Mouse: PS/2 type mini Din
6-pin (female),VGA: HDDB 15-pin (female)
|
|
Console Port: |
- 1 port.
- Keyboard and Mouse: PS/2 type mini Din
6-pin (female), VGA HDDB 15-pin (female)
|
|
PC Selection: |
Hot-Keys and Push Buttons |
|
LED Segment: |
Two LED indicators per port (PC Link (green) and
PC Active (red)) |
|
Auto-Scan Interval: |
5 ~ 99 seconds |
|
Keyboard State: |
Saved and restored |
|
Video Bandwidth: |
200MHz |
|
Power Adapter: |
External AC Power adapter, 12V DC, 1A |
|
Dimensions: |
406.0 x 163.5 x 85.0 mm (15.98 x 6.44 x 3.35
inches) |
|
Temperature: |
- Operating: 0° ~ 40° C (32° ~ 104° F)
- Storage: -20° ~ 60° C (-4° ~ 140° F)
|
|
Operating Humidity: |
0% ~ 80% (non-condensing) |
|
Emissions: |
FCC, CE |
|
