TRENDnet Switch TK-803R
8-Port Rack Mount USB KVM Switch, Model # TK-803R
The 8-Port USB KVM Switch lets you manage
multiple computers with just one set of keyboard, monitor and mouse. This rack
mount device supports USB and PS/2 interface on the console side. Popular
hardware platforms such as PC, Linux and Mac are supported. Users can switch
between PCs using hot-key or push button for flexible management. Users can also
hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the
perfect choice for managing multiple PC's.
|
Features |
- 8-Port USB KVM Switch
- Supports both USB and PS/2 Interface for
console port
- Supports Microsoft IntelliMouse,
IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and more
- Supports Windows 98SE/ME/ 2000/XP/2003
Server, Linux, Mac OS and more
- High video quality; up to 2048 x 1536 VGA
resolution
- Firmware upgradeable via PC port
- Auto-Scan for monitored PCs with
adjustable scan interval from 10-99 seconds
- Keyboard status restored when switching
between PCs
- LEDs display for easy status monitoring
- Beeping sound for port switching
confirmation (enable/disable)
- Hot-Key or push button switching
- Plug & Play and Hot-Pluggable
- Standard 19” (1U) rack mount design
|
|
Specifications |
|
Management |
8 Computers |
|
Standard |
USB 1.1 Compliant |
|
PC Ports |
8 x VGA HDB 15-pin (female) |
Console Port
|
- 1 x USB (Type A) / PS/2 (6-pin Mini Din)
Mouse
- 1 x USB (Type A) / PS/2 (6-pin Mini Din)
Keyboard
- 1 x VGA HDB 15-pin (female)
|
Cable Interface
(Optional, not included) |
To KVM |
To PC |
- 1 x VGA HDB 15-pin (male)
|
- 1 x VGA HDB 15-pin (male)
- 1 x USB (Type A)
|
|
Supported OS |
Windows 98(SE)/ME/ 2000/XP/2003 Server
Linux, Mac and More |
|
PC Selection |
Hot-Key or Push Buttons |
|
Auto-Scan Interval |
10-100 seconds (Programmable through Hot-Key) |
|
LEDs |
On-line (Red), Select (Green) |
|
Keyboard Status |
Saved & Restored |
|
Power Adapter |
9V DC 1A External Power Adapter |
|
Dimensions |
407 x 165 x 45mm (16.0 x 6.5 x 1.8in.)
|
|
Temperature |
- Operating: 0°C~40°C (32°F~104°F)
- Storage: -20°C~60°C (-4°F~140°F)
|
|
Humidity |
0%~80% (non-condensing) |
|
Certification |
CE, FCC |
| |
|

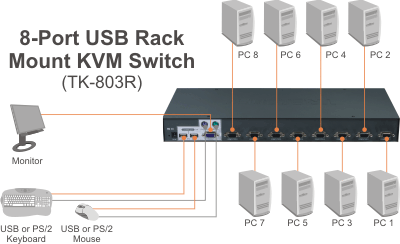

KVM Interface |
|
| |
|
